Flatness

Measure flatness, angle, parallelism and more

Warp, Bow and more

From Wafers, PCBs to automotive parts and medical devices, precision in flatness, warp and bow is crucial. Our metrology systems deliver fast, non-contact measurements of these critical parameters with micrometer and nanometer accuracy.

FLATNESS

Contact

Flatness Analysis

Quickly and efficiently analyze flatness, warp, bow and other critical parameters of your products. Either manually with ScanCT or fully automated using ASCAN.

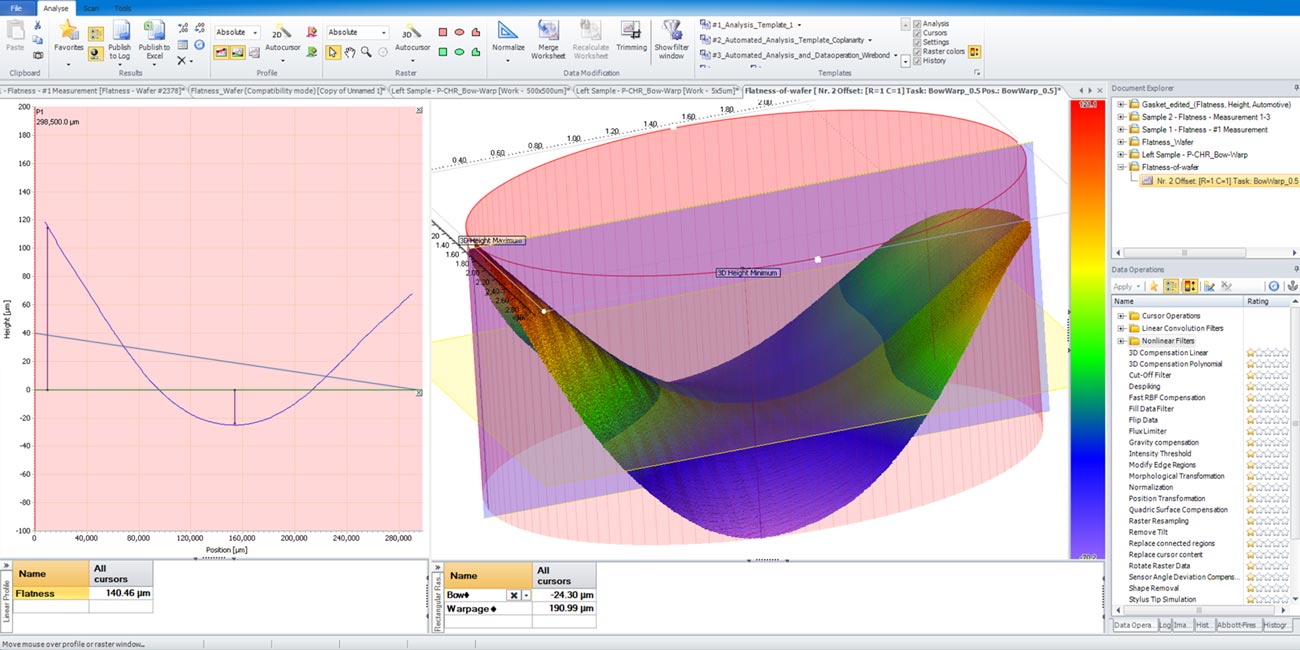

Warp & Bow

Our systems provide high-resolution measurement and analysis of warp and bow, ensuring compliance with standards such as SEMI – supported by three-point alignment or customized interfaces.

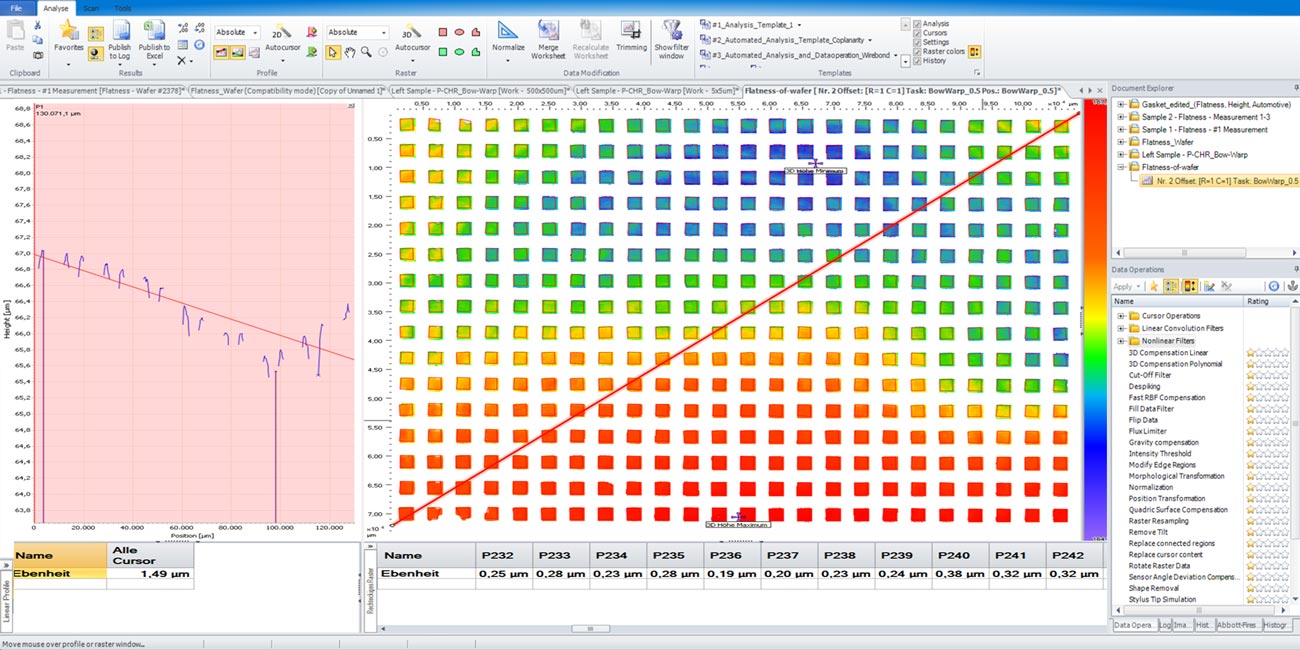

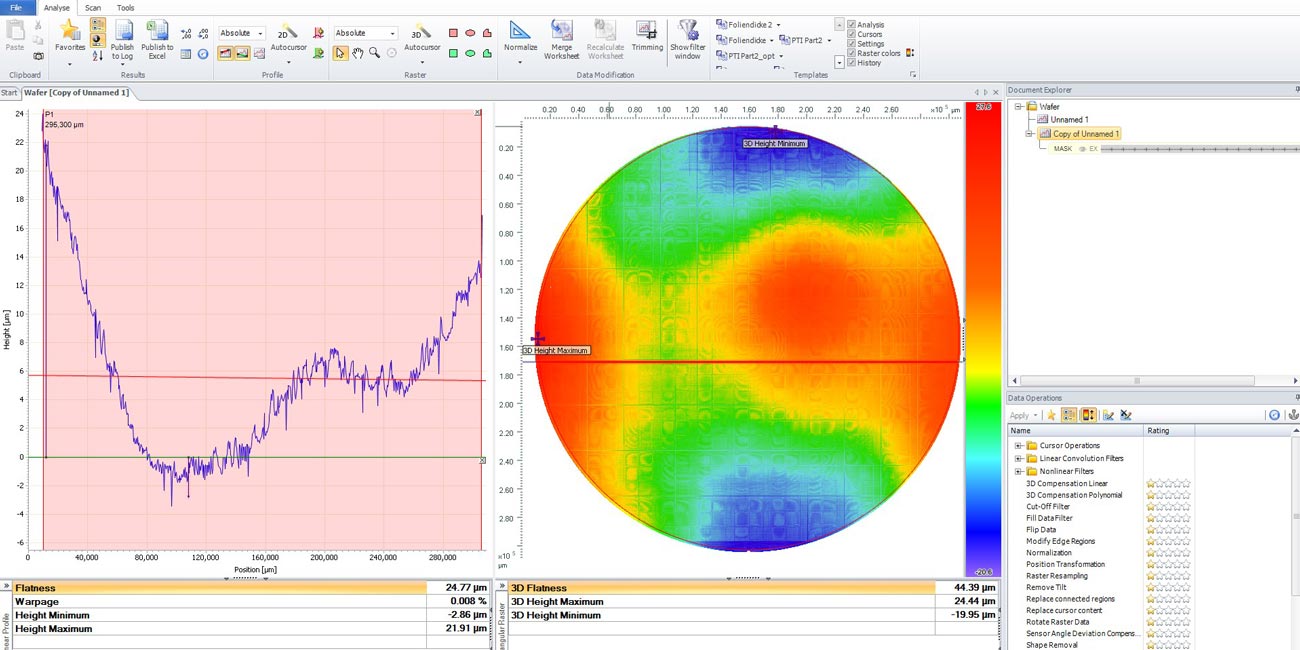

Flatness

Measure the flatness of your products with high-accuracy. Scan an entire part or multiple parts at once for individual or combined analysis.

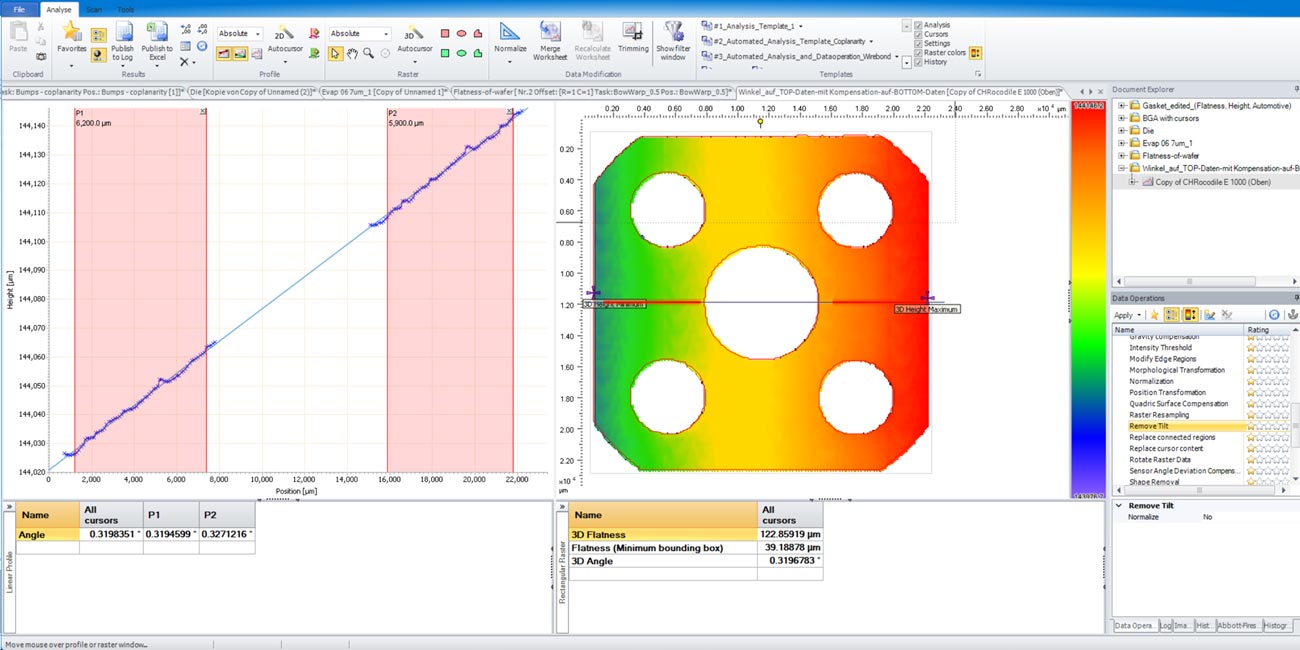

Angle measurement

Perform precise angle measurements in both 2D and 3D. Need to measure an angle relative to a specific area? Simply place a reference cursor on the desired area and the analysis will automatically adjust to it.

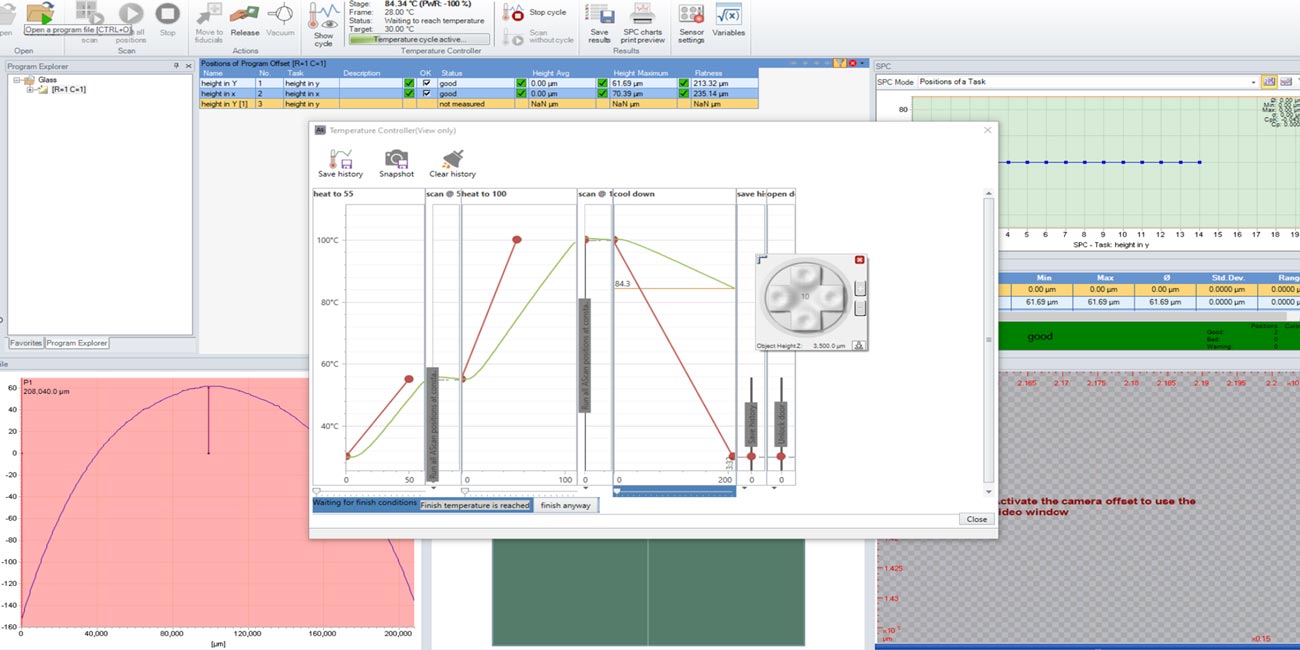

Thermal Warpage & Stress

Our metrology systems with heating provide a heating plate or convection chamber for high-resolution thermal warpage and stress measurements. Define precise heating and cooling cycles, measure warpage and thermal stress at specified temperatures.

Automate your Flatness measurements with ASCAN

Explore AScan

Do you have question about your Flatness measurements?

Non-Contact Measurement

For most flatness measurements chromatic confocal sensors are an excellent choice. However, for high-resolution measurements down to the (sub-)nanometer level we can configure our systems with confocal microscope or white light interferometer – or a combination of all.

Chromatic Confocal

The chromatic confocal sensors are an excellent choice for fast flatness measurements across a wide range of materials. From low to highly reflective surfaces. Our systems support multiple sensor heads within a single setup, allowing effortless switching with a single click in the software. Additionally, high-speed line sensors are available. Capturing up to 36 million measurement points per second for maximum efficiency.

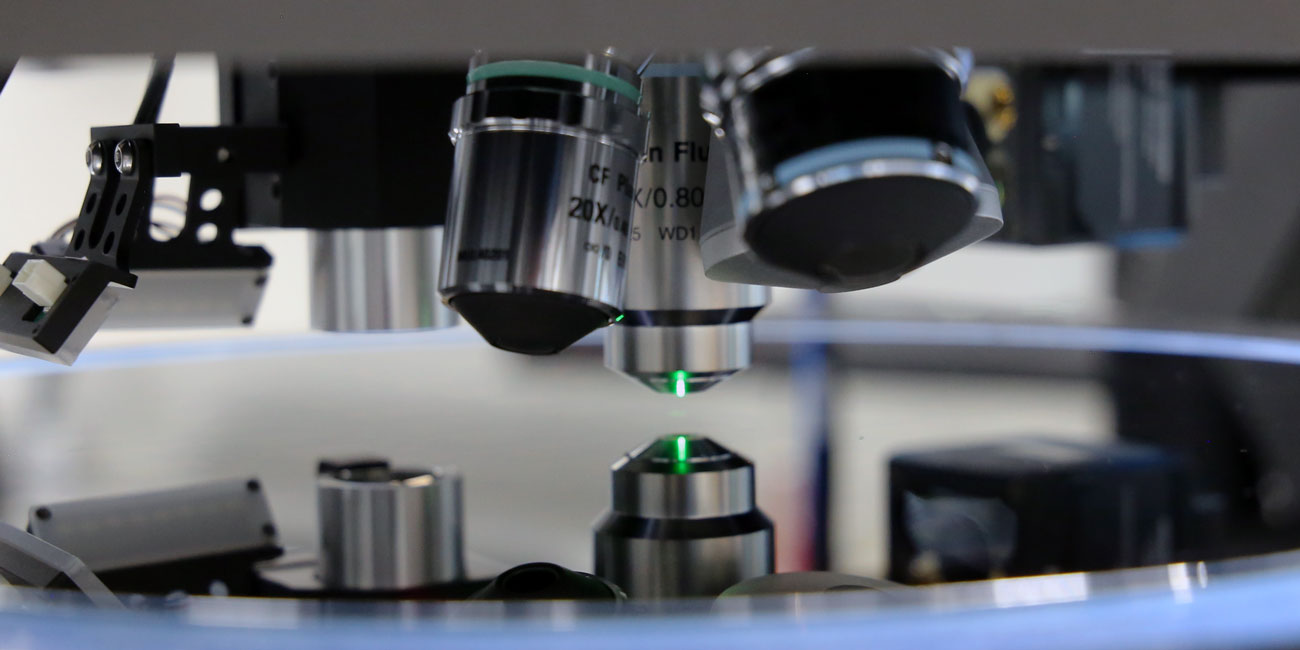

Confocal Microscope

Our systems can be equipped with a confocal microscope (CFM) that provides resolution down to 1 nanometer, making it ideal for high-resolution flatness measurements on smaller areas. The CFM offers the flexibility of different magnifications and features an automatic turret that allows seamless switching between objectives with a simple click or automated in ASCAN.

3D White Light Interferometer

For situations that demand even greater accuracy our 3D White Light Interferometer (WLI) with a resolution down to 0.1 nanometers is the ideal solution. It is now also available for in a high-speed version.

Examples

With our range of sensor technologies and versatile system options, flatness can be measured accurately on almost any material. Achieve z-resolutions as fine as 0.1 nanometers or measure surfaces up to 650 x 650 mm².

Substrate

Flatness measurement on a substrate with automated cutout of the components on top.

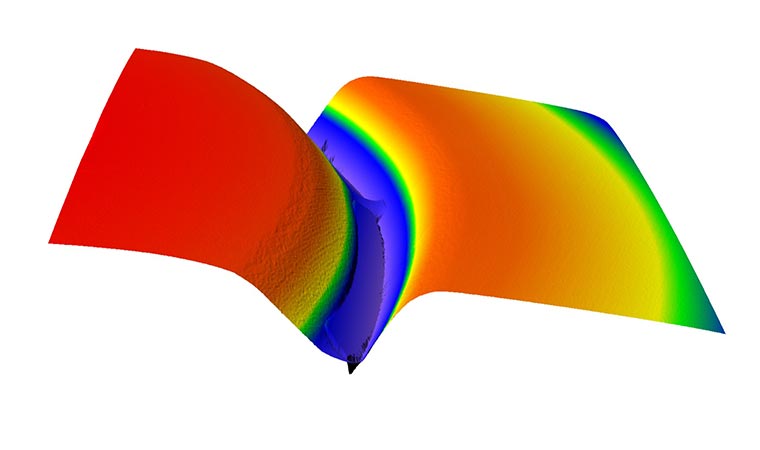

Medical Component

High-resolution measurement of flatness and angle on a component for the medical industry.

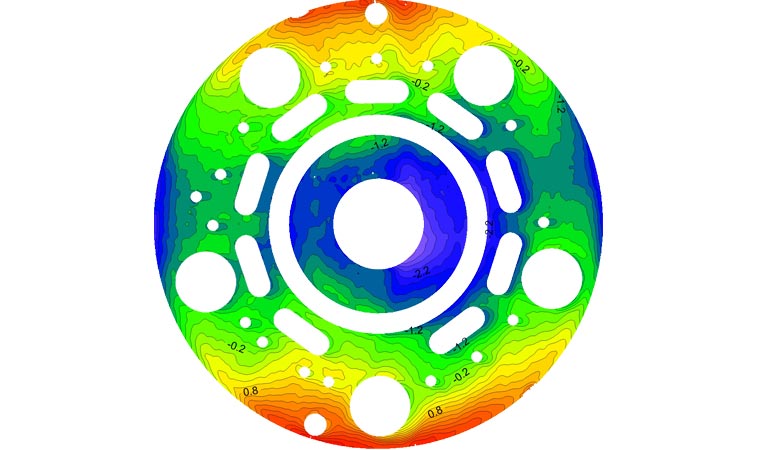

Mechanical Part

Flatness measurement of a mechanical part in the automotive industry using a chromatic confocal sensor ensures precise evaluation of surface evenness.
